Ready to Move On

"Sanding the interior to a truly finished surface is going to take awhile. "  - PocketShip Manual

No kidding.  This was easily the task I've most dreaded in building this boat.  But, after about 6 hours of sanding, I'm basically done sanding the interior of my boat, and ready to move on to other tasks.  I did a pretty good job with the fiberglass work, otherwise it could easily have taken twice as long.  I'm tempted to post a long series of photos showing the progress as I sanded.... That would be one boring sequence of photos.

There are still probably another 2 hours of so of sanding that will have to be done before I'm ready to paint the interior, but it doesn't make any sense to do any more now, since in the meantime I'll be making a mess of some of those areas.  For example, before I paint, I'll be building a place to mount a battery, and will be cutting holes for various electrical components, etc.  and in the process of doing that, there will be some epoxy sloshed around that will need to be sanded.

Anyway, the bottom line is that I'm moving on.  The next big job will be to fit up the cabin sole.  I got started on that last night managed to get one plank installed.  After that's all done, I'll be working on laying out and constructing hard points for various systems on the boat (battery box, electrical panel, radio, bilge pump, etc).  And I've still got a little bit of fiberglass work to do forward of bulkhead 2!!!  Can't forget that.  Then a little more sanding, and time for paint!

I picked up a couple of components for the electrical system already.  Holes for these will be cut soon.

The first board of the cabin sole has been installed!

Cleats, Clamps, Carlins, Carborundum, and Eucalyptus

I've spent some time sanding my newly-fiberglassed interior.  I am pleased to report that it is going pretty quickly.  I have spent around 3 hours sanding so far, and am just over half done.  Unfortunately, a lot of the sanding remaining consists of tight corners and small, hard to get to spaces.  Not fun, but I did a pretty good job with the glass work, so it isn't as bad as it could be.  And I am motivated to get it done, since after I'm done, there are a done of fun projects that should really advance the "doneness" of the boat quickly.  Motivation is good

So..weird story...I was out sanding away when suddenly I started smelling spaghetti inside my respirator.  Thinking that my sander or vacuum might be about to explode, I quickly shut down everything, pulled off my mask and...no spaghetti smell.  Mask back on, spaghetti.  I started sanding again and the smell went away.  A few minutes later, though...spaghetti.  Again, no smell outside the mask (except, of course, epoxy dust). More sanding, smell goes away.  Then it comes back again.   Strangest thing I've experienced whilst sanding.  I finally decided to interpret it as being time for dinner, so I hung up my sander, called it a night, went inside the house and ate...chicken.

Interlaced with sanding, I've tackled installing the framing that will support the cockpit deck and footwell.  In sharp contrast to all the epoxying that I've been doing recently, here I'm measuring, cutting, and installing wood, and as I do so, the boat looks different, so it feels like I'm actually building something.  Fun and highly rewarding.
In the manual, it looks pretty straightforward to cut and install all of these cleats, carlins, and beams.  In actually doing it, you realize that there are a ton of compound angles everywhere.  Lot's of dry fitting and lots of measure twice, cut once, mesure once, cut twice, etc.  Also, just locating the cleats in the right places, particularly on the transom, front send of the footwell, and on the footwell sides was trickier than expected.  Lots and lots of dry-fitting is required to make sure everything is where it should be.  It goes slower than you expect, but it is awfully fun work, so no complaints.

Getting the angle of the hull.  The deck carlins are beveled to this angle

Set the sawblade to the right angle

Run it through and you get this!

Here's what it looks like in the boat

Next up, cover everything you see here in more timber

Once again, my clamp collection is deployed en masse

In the manual, the cleats on Bulkhead 8 are shown inside the cabin.  I didn't see any reason for that and figured that if they were installed inside the water-tight compartment, it'd save me some sanding and finishing.  So, that's what I did.

I was constantly dry fitting the footwell sides to check the placement of everything

There were lots of compound angles

The beams of the transom need to be notched out to receive the carlins coming in from Bulkhead 8.  The manual has these cut out after the beams have been glued.  Fellow PocketShip builder Sean came up with a nifty idea that I stole.  His idea was to pre-mark the cutout and the beam, and cut about halfway through the beam from the back side.  Then, glue in the piece, being careful not to get any glue on the bit you'll be removing.  Once everything is dry, simply pick up your saw and finish the cut.  Thus, the beam is aligned across the notch, and it doesn't take any swearing or chisel work to get it out.  Thanks for the great idea, Sean.

Before gluing the deck beams onto the transom, I pre-cut the notches into the back side where it is notched out to receive the carlins.  After it was glued down, I finished cutting it out.

Ready for a carlin

More cleats/carlins.  Notice that I've temporarily set the aft carlins in place...in the wrong spot.  They should be in the
next notch outboard

I've spent quite a long time at Martin Lumber, trying to select an appropriate wood for my cabin sole.  I wanted something hard and tough, with a nice, tight grain, and a mellow, luxurious colour to it.  I looked at teak (too expensive), mahogany (too soft), maple (too light in color), blood wood and paduak (both too dark),  cherry (grain wasn't what I was looking for), oak (too ubiquitous), etc, etc.  Finally, I settled on something called lyptus.  It's hard, heavy, millable, sustainable, has a beautiful, tight grain, and a gentle reddish color.  I did a little research on it, and it turns out that it is a plantation-grown eucalyptus hydrid.

I also wanted to add a little bit of flash to the inside of the cabin, so I decided to glue up a piece of figured maple between two strips of bloodwood to serve as an accent plank.  When finished, the figured maple has and awesome iridescent quality.  Add in the deep-red contrast of the bloodwood, and I think it'll look awesome.  Right now the plan it to run one of these accent strips down the middle.  I'll likely also run one more on each side farther from the centerline.  I'll be playing around with it as I lay the sole, and see what looks right.

I've taken a couple of scraps of the woods and experimented with a couple of different finishes.  High-gloss polyurethane or varnish are out...too garish.  I want a nice, soft, luxuriously satin finish.  Danish oil looks really good on the lyptus, but doesn't totally bring out the iridescence of the figured maple.  The the accent strips might end up getting a satin polyurethane, but I need to see how everything plays together.

I have yet to start putting down the sole.  I think I'm going to finish sanding the interior  and get the distasteful job out of the way first.  But gosh, it is going to be fun, so I'm having trouble holding off.   Also, I don't think I've explicitly mentioned this, but I haven't yet 'glassed the bilge panels forward of bulkhead 2.  It's been on my to-do list for a while, but the other projects have taken precedence largely because they're more rewarding.  But I will have to tackle that soon.  Anyway, more to come!

The makings of a nice sole.  The figured maple/bloodwood laminated piece is in the center, flanked on either side by lyptus.

Here's another view.  Notice the beautiful matte-grey-ish color of the sanded 'glass inside the hull

Re-energised

It was just over a year ago that I took a trip to the Wooden Boat Festival in Port Townsend for the first time.  I went for a number of reasons, not the least of which is that I love wooden boats.  But, the number one reason I went?  To see a boat called PocketShip.

PocketShip at the 2010 Wooden Boat Festival in Pt. Townsend.  Alas, she didn't make it for the 2011 show.

I first became aware of the PocketShip design when I was on a wind tunnel test in Switzerland in May, 2010.  Another fella there, one of our wind tunnel model makers, saw a picture of my Redfish Spring Run kayak, then still under construction flash across my screensaver, and pretty soon we were talking boat building.   He that he and a buddy had built a Chesapeake Light Craft kayak, a Shearwater hybrid model, if I recall.  This guy, being wind tunnel model maker, is a top-flight craftsman.  So, the kayak that he helped on, was naturally immaculate.  It was even featured on CLC's web page.  He showed me some pictures at work, and that night I back to CLC's site to have a closer look at something else that had earlier caught my eye.  A small cruising sailboat.  Yes, PocketShip.

I spent that night reading John C. Harris' excellent marketing materials on the CLC  website, and then proceeded to cruise the web for more information.  I found Dave Curtis' blog about his adventures building PocketShip, and read them over the next few days, completely enthralled.  Like so many other PocketShip builders, I was inspired by Dave's writing.  I think many of us think of him as "That PocketShip Guy, " a trailblazer, and by virtue of having already been there, something of a guru of Pocketship building.  Anyway, as I read Jai Guru Dave's blog, I was hooked.  I wanted to build this boat.  (Dave's blog also inspired me to write this blog.  Like so many sequels, it can never be as good as the original.)

Pretty soon, back on the CLC website, the complete PocketShip kit was in my shopping cart.   I came this close to buying it.  But I held back.  The kit was a little expensive.  And I thought about Dave's remark about not being able to say you had truely built the boat if someone had cut out all the wood for you.  So, instead of hitting "Complete Order," I closed the window.  The next day, the kit was back in the cart.  But at that point, I did already have two boats under construction in my garage.  So I closed the window.  Next day, same thing.  Next, I tried scaling back...maybe just the plans.   Nope.  After many days of going back and forth and back and forth, I decided to  buy the manual and read it over before committing myself.

The manual was waiting for me when I got back from Switzerland.  I ripped open the package and read it cover to cover.  Twice.  Some things looked really fun, others puzzling, and others yet, torturous.  The absolute worst, most intimidating, scary part of the whole process was the fiberglassing and sanding of the interior.  All those little pieces of  'glass, all those edges, all those corners.  Yuck.  Still, there was no doubt I wanted to tackle this project, though I could not contemplate it until I finished the two kayaks in my garage, figured out how I was going to tow it, and figure out where I was going to put it when I was done (besides in the water whilst sailing, that is).

So, that's what lead up to my trip to Port Townsend three months later.  I had finished one of the two kayaks, and was making great progress on the second.  The towing problem was simple...Mopar makes a hitch for my car and it has plenty of towing capacity for PocketShip.  The third obstacle, where to store when I was done...well that could wait for another day.  A year later, I still don't know.  I'll figure it out.  Anyway, the major hurtles were mostly removed, and seeing PocketShip in person...well, the bottom line is that I was sold.

I didn't get to spend much time at the Wooden Boat Festival that year.  That day I woke up in the morning, packed a suitcase full of clothes, caught a ferry, checked out the show, saw PocketShip, caught another ferry, and by 7:00om that night was on board a 747 bound for the U.K. for a multi-week wind tunnel test.   If you look back to the very first post of this blog, you'll find out what happened next.

Why all this background?  And why now, a year after I started my build?  One reason, it shows the power of motivation.  I got all jazzed up after visiting Port Townsend and seeing PocketShip #1.  That launched me into a huge project, one that's had it's ups and downs, but so far has been greatly enjoyable.

So, this year, off again I went to Port Townsend, in need of motivation.  I hadn't made much progress all summer.  This was partially due to my enjoyment of other summer activities, and partially due to my generally unhappiness with my fillets and my dread of sanding them.

Is there anything prettier than a schooner with tops'ls set?

This time, I had more time to spend at the Festival.  I walked around, looked at the boats, listened to the talks, and met another PocketShip builder, Peggy, from Montana.  We swapped stories and commiserated a bit about the challenges of boatbuilding and the emotional rollercoasted that that goes along with it.  We are both in about the same spot in the build, so it was good to get somebody else's perspective on the whole thing.  I also met Larry Cheek, the builder of a fine Devlin Winter Wren, and the author of a great boatbuilding blog.  I've identified a lot with his struggles with perfectionism in boatbuilding, and admire his ability to let it go..  :-)  So, I definitely enjoyed talking to a range of people.

List everything wrong with this picture.  Oh, wait, there's nothing wrong with this picture.  Beautiful Pt. Townsend.  A pod of wooden kayaks.  And wooden boats galor!

In between the lectures, and the chats, and the boats, and eating some marginal food, I spent a lot of time look at fillets.  I think I looked at every fillet on every stitch and glue boat at the festival.  And you know what?  Mine aren't that bad.  At all.  Even the ones on the demo boats at the CLC booth weren't quite as nice as mine.  Seriously.  That was heartening.  Maybe instead of the major sanding job that I had anticipated, I really should just be considering a quick once-over.

So sure enough, just like the previous year, I left Port Townsend energized!  The next weekend, I suited up, went out to the garage and tackled those fillets.  It probably took longer than it needed to, and I probably sanded more than I needed to.  But, I finished.  So, I broke out the vacuum and cleaned out the interior and prepared to lay some fiberglass.

I didn't see any good way to 'glass the whole interior in one go.  Neglecting the fact that I wouldn't be able to get the seams as nice as I'd like, my arms just aren't ape-like enough to easily reach  all the way to the centre of the boat from outside the boat.  So, I settled on 'glassing half the hull at a time.  To try and keep the seams nice, I decided that the easiest thing to do would be to alternate between port and starboard for the glass in between each of the floors (I think the pictures below will illustrate what I mean).  That way I wouldn't have any overlapping glass when I was wetting out.

As I've done before, and as I highly recommend, I laid tape out on the borders of each area to be fiberglassed.  Then I laid the 'glass down inside, smoothed it so it lay flat, and trimmed it back to just outside the outside edge of the tape.  Once I did this for all the bays, I mixed up the epoxy and wet out the glass.  After everything was wet out, I squeegeed each section to get the excess epoxy off and then waited about two hours for things to tack up.  Then, I took my razor knife and trimmed the 'glass in along the inside edge of the tape and pulled the tape (on the fiberglass on it) up, leaving a nice clean edge on all of my freshly laid fiberglass.

In all, it was a very long day, but I was thrilled to get it done.

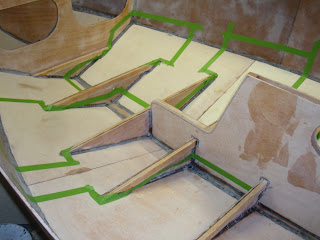

Taping off the edges of the bays to be fiberglassed.

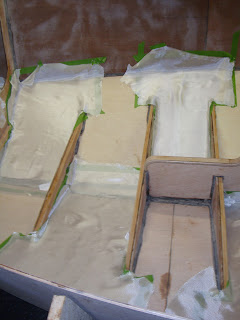

Laying down the 'glass in alternating bays

In order to keep dust and other contamination out as I crawled in and out of the boat with fresh epoxy, I donned these fashionable shoe  covers.

Here's the 'glass, wetted out.

Same thing as the last picture, but it took a really long time, so why not bask in it?

The next day, after the epoxy had dried, I set up to do the same thing in the other half of the boat.  Tape, cloth, epoxy, squeegee, wait, knife, peel, perfect.  I also coated the centerboard trunk with epoxy.

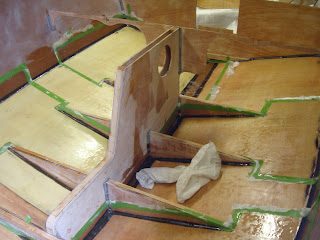

The remaining bays, ready to go

Wetted out.

Cutting and peeling back the tape and 'glass





The inside of the boat, fiberglassed!  Hooray.

The manual seems to imply that only one more coat of epoxy goes inside, but I did two more for the usual total of three.  Habits are hard to break.

So, that's it.  This was one of the projects that, even since before I began, I have dreaded, and now it is done.  Sanding all this was really intimidating too, but I did a really nice job on the 'glass work, and the edges and overlaps are neat and tidy.  So it shouldn't be too hard.  I'll alternate sanding with other boat projects over the next few weeks.

Speaking of the next projects on the boat, next up, I will be installing a variety of beams, cleats, and carlins on which the cockpit deck will eventually attach.  Then I'll start in on the cabin sole.  In direct contrast to the one I just finished, these are projects  that I have looked forward to ever since reading the manual the first time.  I'll get to cut some wood, glue stuff together, and generally do things that'll make the boat look more and more finished.  Hooray!
